**YWBL-WH DC Feed RF Bias Tee 10-6000MHz, RF Microwave Bias Active Antenna Power Supply, Electrical Tools for Ham Radio, Signal Amplifiers & RF Testing**

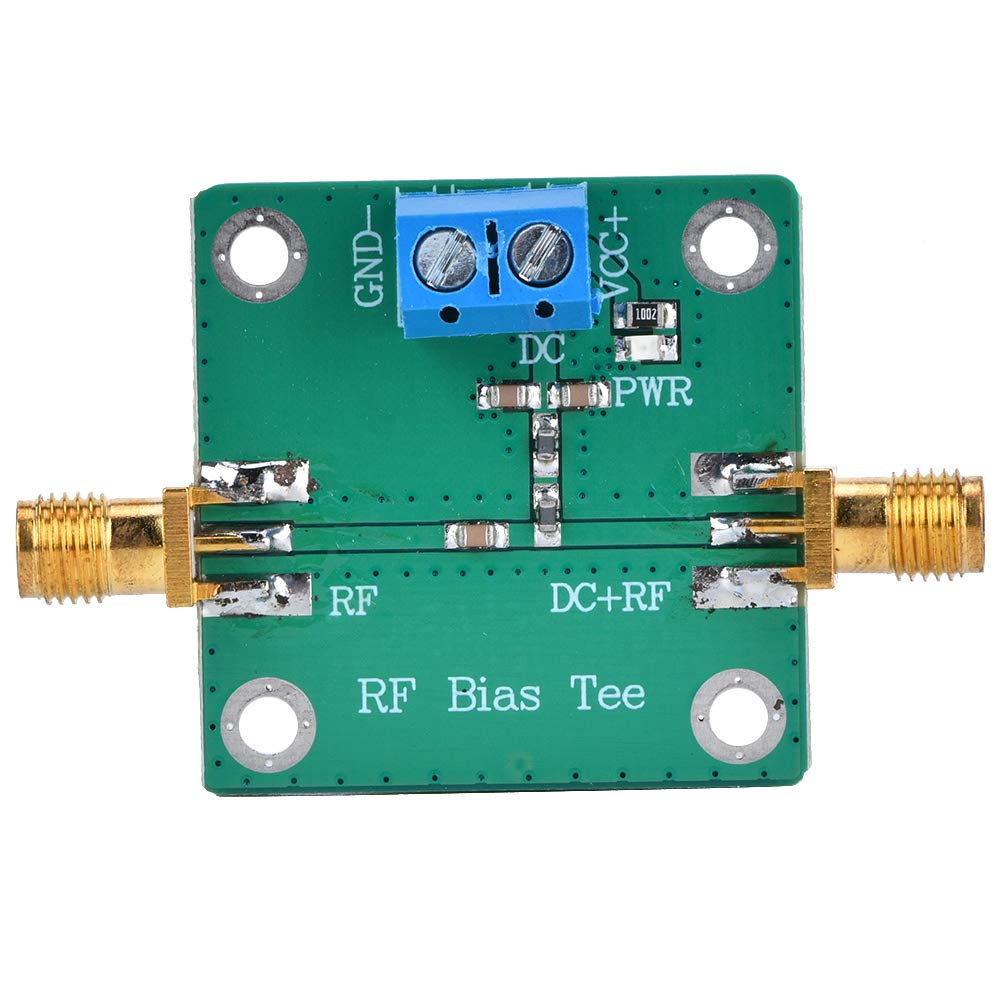

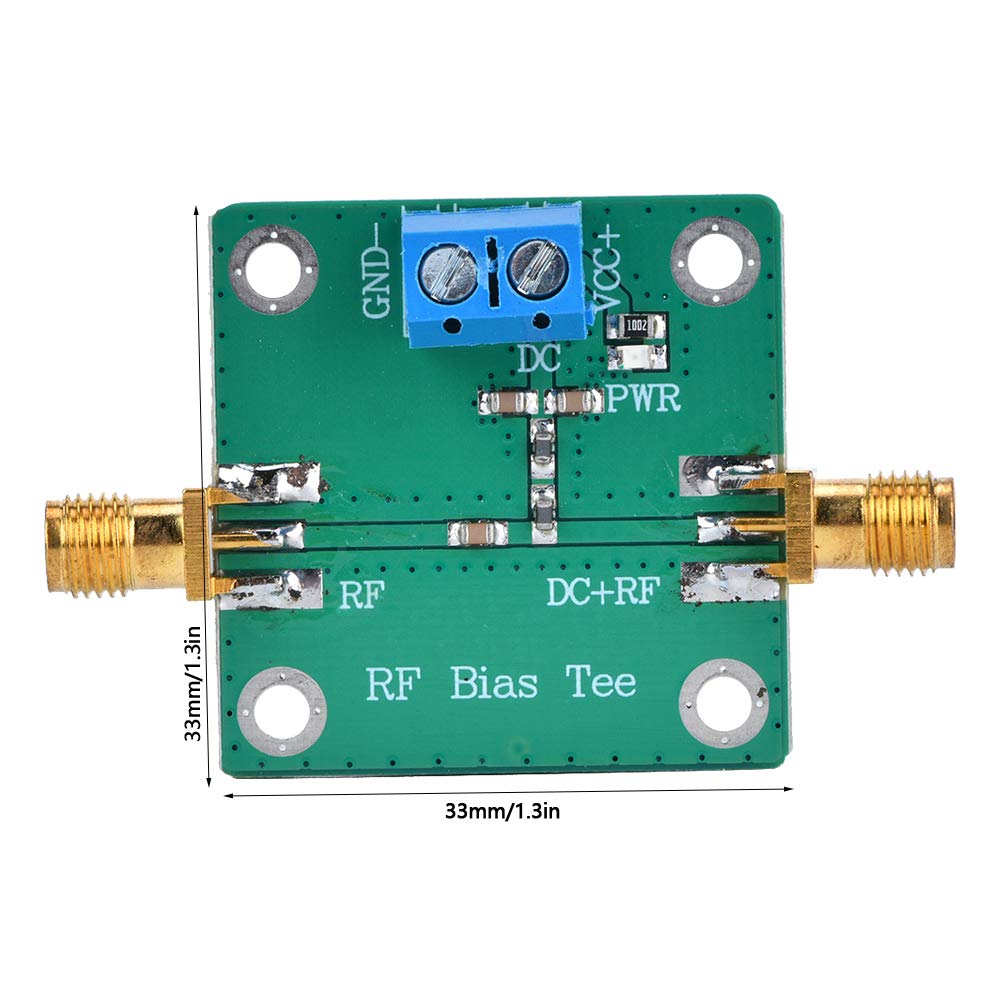

Specification: Item Type: Bias Tee Frequency Range: 10-6000MHz insertion loss: 0.3dB@512MHz, 0.45dB@1575MHz High Voltage: 50V High Current: 500mA RF Connector: SMA-K (external thread internal hole) System Impedance: 50 ohms Size(without connector): 33 x 33mm / 1.3 x 1.3in Wiring Method: DC: External DC power supply RF: RF terminal (this terminal can only transmit RF ) RF + DC: RF DC bias (this terminal can transmit RF and DC bias) GND-: Common ground terminal of DC power VCC +: Power supply terminal of DC power Package List: 1 x Bias Tee

This DC bias tee features wide frequency ranging 10-6000MHz.

Can also be used as output block of wide-band amplifier.

Convenient to wire and use, insertion loss is 0.3dB@512MHz, 0.45dB@1575MHz.

Communication data is injected through RF terminal.

Great RF power supply for active antenna.
