JRready ST5240-HT250 16-Piece Electrical Connector Inspection Tool Kit with Detachable Contact Tester - Automotive Pin & Socket Tester Set for Vehicle Electrical System Diagnostics & Maintenance | Perfect for Mechanics, DIY Car Repairs & Automotive Electrical Testing

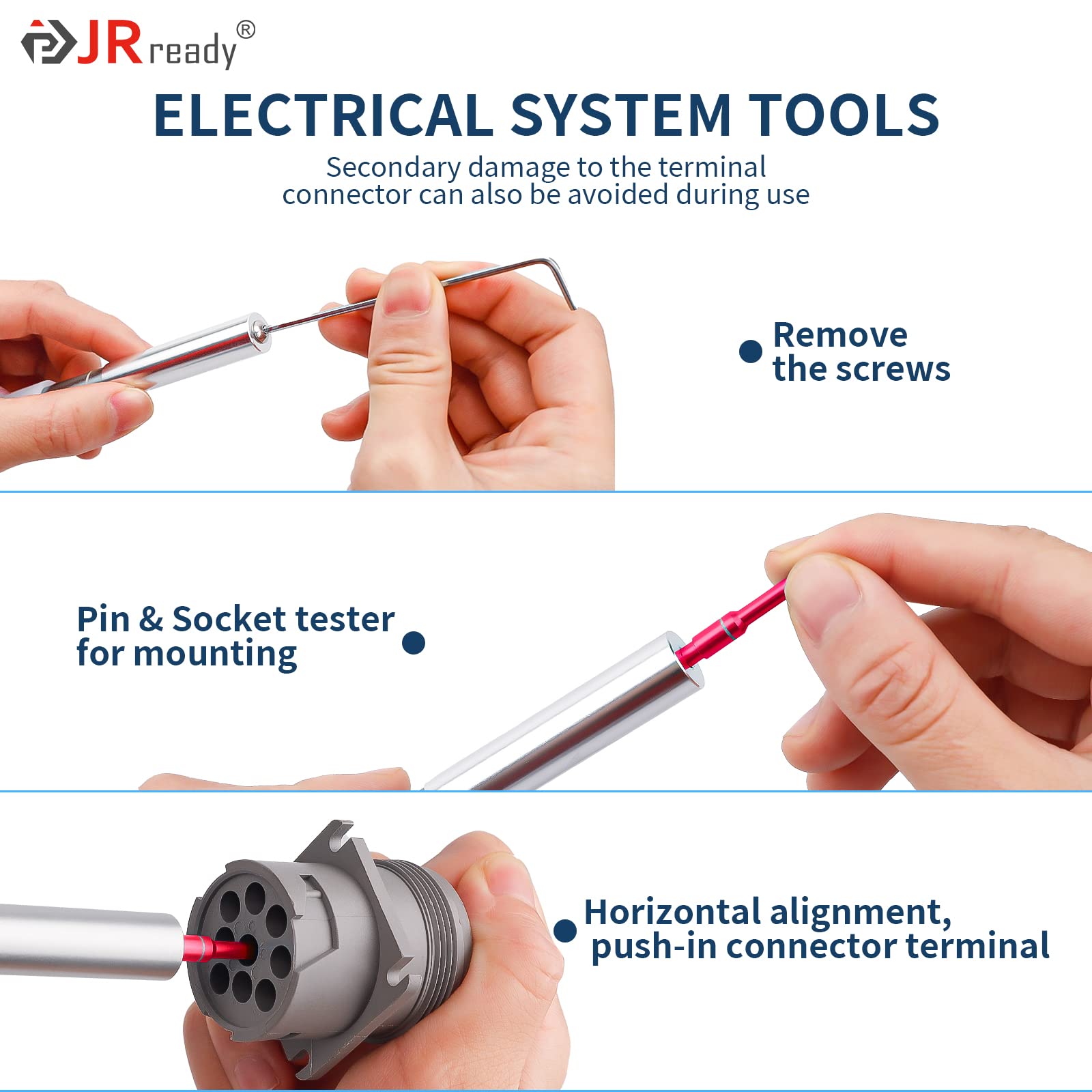

PLEASE NOTE 1. Each tool in the factory when its force value has been adjusted, if necessary, please adjust its force value 2. Remove the protective cap and loosen the lock nut (5/16" spanner) so that the adjusting screw can be freely adjusted 3. Place the tool on the tension tester to adjust the force, if there is no suitable tester, you can adjust manually Each Tool Has A Line Force Indicator That Has Been Set At The Factory 1. Insert the tester into the contact head. the tool must be in a straight line with the contact. 2. Using the standard, set the tool to the required force. 3. Wear safety glasses when using. 4. Apply pressure towards contact until slide aligns with indicator line and hold tester in position for at least 2 seconds, contact should remain in place if retention force is up to standard. 5. The tool should be checked every 2000 times to verify the force of the indicator line, and should be returned to the tool box in a dry and clean place when used up. 6.Tips fit standard M39029. ST6260 ST6255 ST5211 ST5236 ST6327-2 ST6328 Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 156 4.7 out of 5 stars 360 4.6 out of 5 stars 573 4.7 out of 5 stars 173 4.6 out of 5 stars 236 4.4 out of 5 stars 16 Price $30.99$30.99 $15.99$15.99 $21.99$21.99 $49.00$49.00 $13.49$13.49 $40.99$40.99 ST6260 DTM Series Connector Closed Barrel Terminals Kit ST6255 Deutsch Stamped Contacts DT Connector Terminal Kit Size 16 Terminal Extractor Tool for Weather Pack/Metri Pack Connector Series Terminal Extractor Tool for Deutsch DT,DTM,DTP Series Deutsch 2 Pin DT Connector Kit, Gray Waterproof DT Connector 2 Pin(5 Pairs), Size 16 Stamped Contacts JRready ST6328 Deutsch Waterproof DT Connector 2, 3, 4, 6, 8, 12 Pin

Package Include 67-008-1+68-008-1+67-012-1+68-012-1+67-016-1+68-016-1+67-020-1+68-020-1+67-022-1+68-022-1+67-023-1+68-023-1+67-024-1+68-024-1+67-026-1+68-026-1 retention tester sets

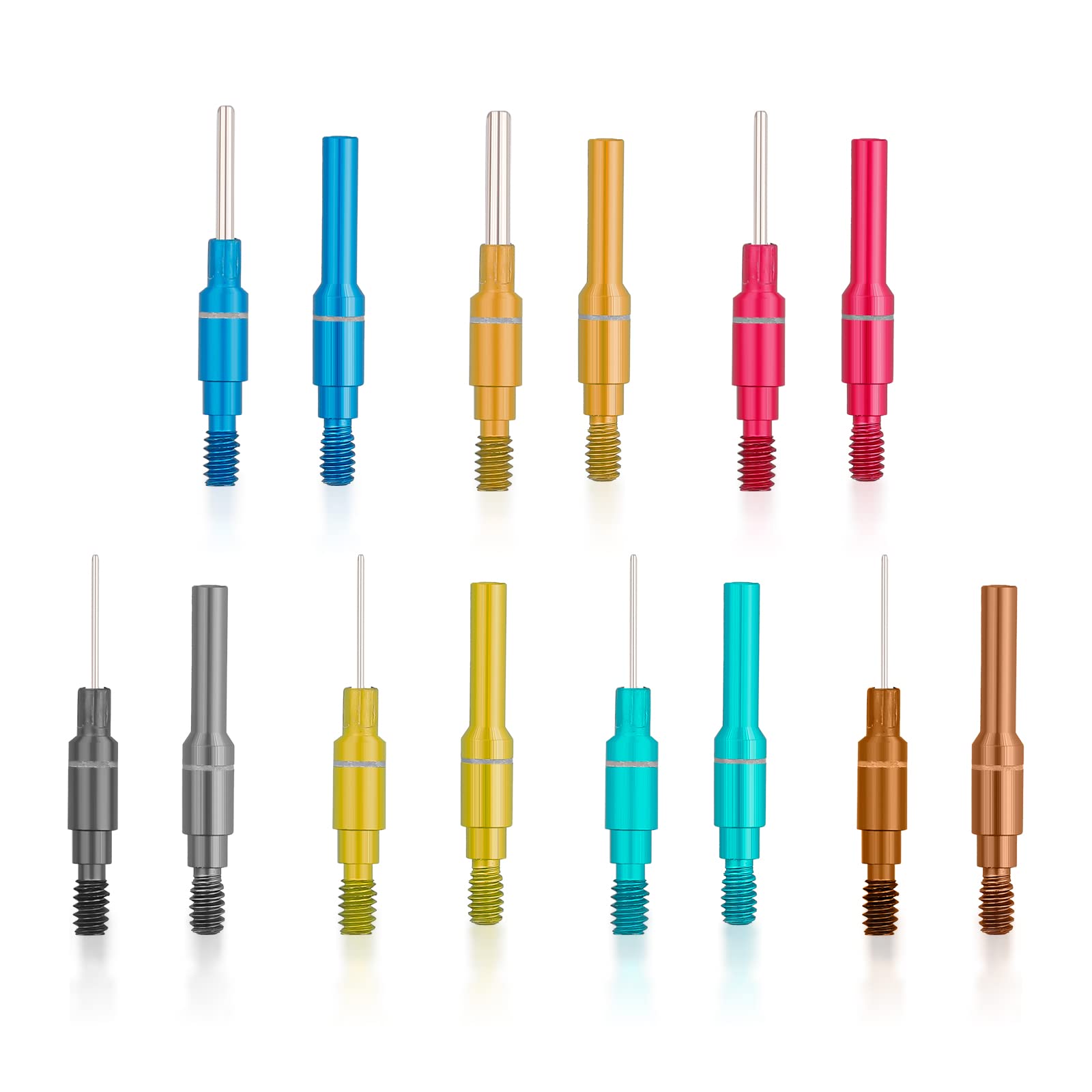

Professional Testing Tools Socket&Pin Tester Tip tools, lightweight aluminium Tester Tip with excellent wear resistance and good tensile strength to make testing easier.

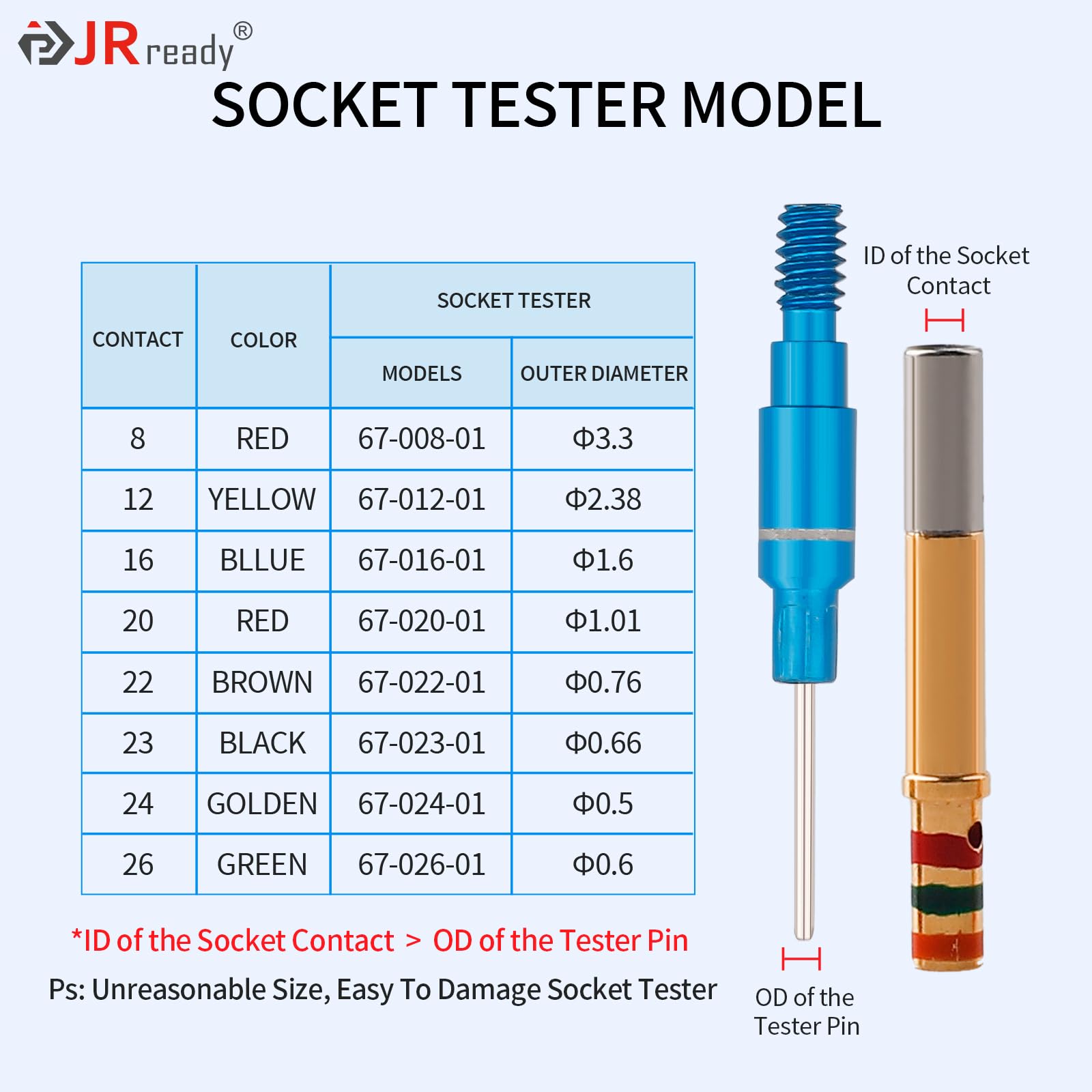

Satisfy All Your Demands：The appailcation pin and socket tester tips for 8# 12# 16# 20# 22# 22M# 22D# 23# 24# 26 #contact，Various specifications of dynamometer Socket&Pin can easily meet different needs，Suitable for harness electrical connector terminal aerospace etc.

Stand-alone Packaging The Socket & Pin Tester Tip tool is supplied with a storage box for easy carrying of the 16-force Socket & Pin Tester Tip tool.

Safe to Use parallel drilling, easy to use. Use with detachable electrical installation tools that should be ordered separately.
